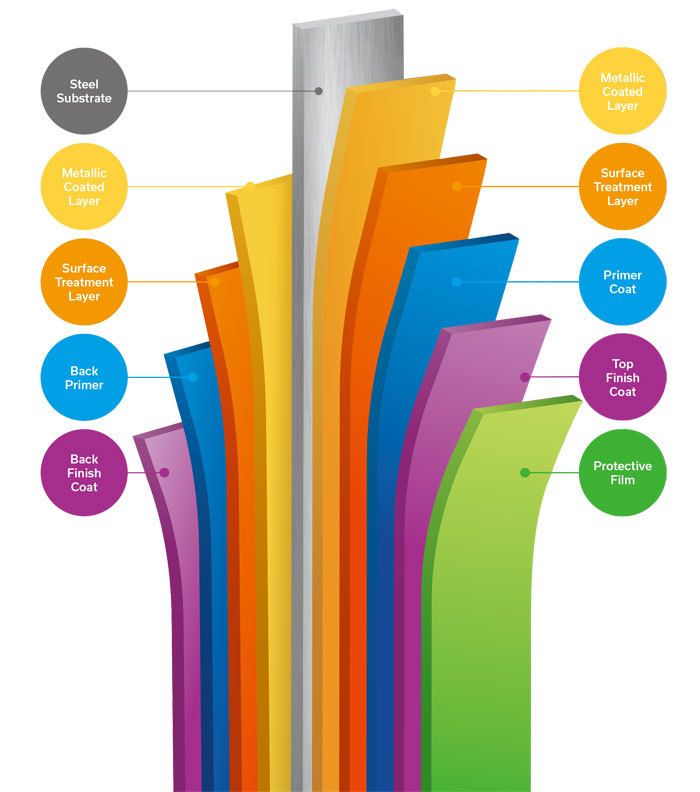

➤Pre paintedGalvanized

 Steel Coils StructureTopFinishCoating

(PE/HDP/PVDF, etc.),

When the thickness is above 20um,

it can effectively prevent the damage of

ultraviolet rays and

harsh environments to

the coating.

Primer CoatingSurface Treatment Layer

(Chromate Coating)

Metallic Coated Layer

 (Zn, AL, 55%AL+Zn)

Steel Substrate

(Cold Rolled Steel Sheet)

Metallic Coated Layer

(Zn, AL, 55%AL+Zn, Sn, Cr, etc.)

Surface Treatment Layer (Chromate Coating)

Back PrimerBack Finish Coating

(Epoxy, Polyester )

PPGI

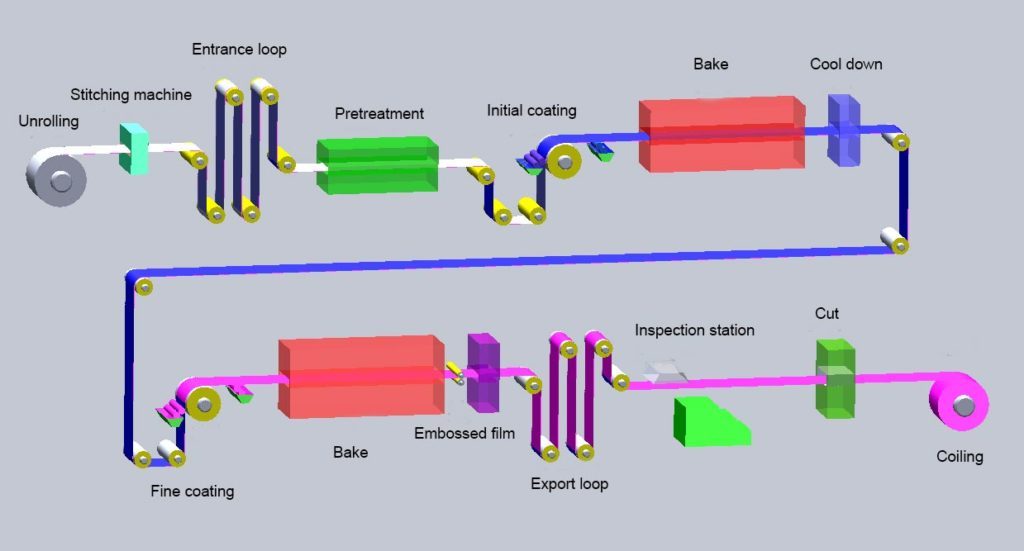

Coil Production

 ProcessUnrolling

 – Stitching machine – Entrance loop – Pretreatment –

Initial coating – Bake – Cool down

– Fine coating –

 Bake – Embossed film

 – Export loop –

Inspection station –

Cut – CoilingIn the above process,

 if the cleaning

degreasing process is not handled well,

the adhesion of the primer of the color

 coated plate to the galvanized sheet is

not good, and it is easy to cause the

topcoat of the color coated steel coil to fall

off during the press forming process.

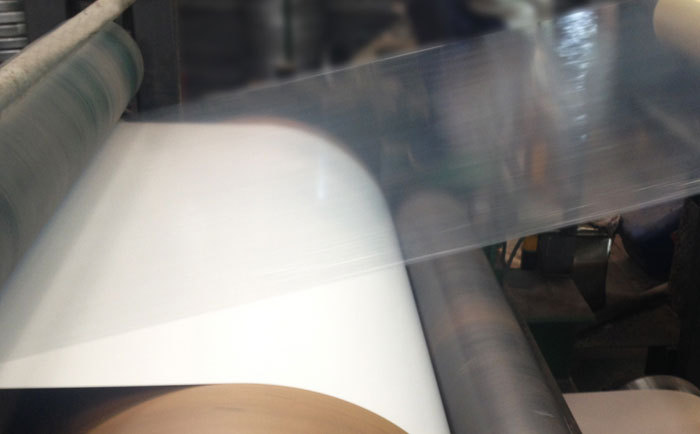

➤ Protective FilmThe protective

film is a transparent or colored plastic

film coated on the surface of

the pre-painted galvanized steel coil.

The purpose is to prevent scratches on the painted surface paint during cold roll forming.

Our plastic film thickness is 30 microns,

40 microns, 50 microns, 60 microns, and 80 microns.

➤Metallic coatingThe metallic coating of

 color coating for construction is

hot-dip galvanized.

The greater the thickness of the metallic coating, the better the corrosion resistance.

The thickness of the metallic coating mainly

affects the cut corrosion performance of

the pre-painted galvanized steel coils,

and the influencing factors include the finish coating, primer, substrate thickness,

and metallic coating thickness.We produce pre-painted steel coils

 for galvanized steel substrates with metallic coating of G40, G60, and G90.

Please select the appropriate one according to the use environment.

Type Of CoatingsWe mainly use

 PE, SMP, and PVDF

three kinds of

coatings to produce

PPGI Coil.

Polyester (PE) coating is suitable

for ordinary

 residential roofing,

the price is the cheapest,

and it cannot withstand

harsh environments. Silicone Modified Polyester (SMP)

 coating contains

 high weathering

and super high weathering paints

 which can be applied in

areas of

 high heat and cold, humid heat,

and extreme cold.

Polyvinylidene

Difluoride (PVDF) coating has strong

 corrosion resistance, strong

 heat resistance, and the highest price.

 It is used in countries with humid heat,

high temperatures, s and more rain.We work with beckers, Valspar, and Akzo.
